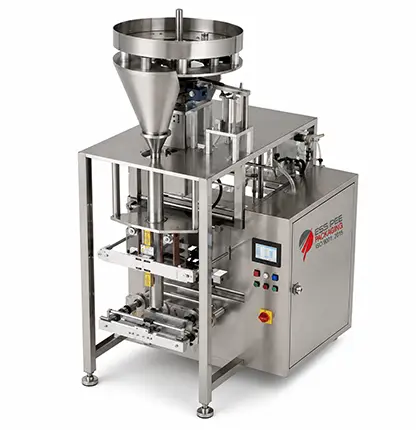

Volumetric Cup Filler Machine (EP-70-CF) is a highly reliable and efficient packaging solution designed to accurately fill and seal a wide range of free-flowing granular products such as salt, sugar, detergent powder, tea, whole spices, and more. Built with SS-304 stainless steel contact parts to meet GMP standards, it ensures maximum hygiene and food safety while delivering consistent weight and volume accuracy from 10 grams up to 1 kg per pouch. With a speed of up to 65 pouches per minute, a pneumatic sealing system for airtight packaging, dual motor film pulling to reduce wastage, and advanced Mitsubishi PLC controls with a user-friendly touchscreen, the EP-70-CF combines durability, precision, and ease of operation.
A Volumetric Cup Filler Machine is particularly a type of filling equipment that employs a cup to fill each pouch, bag or container by displacing a particular volume of the product, thereby laying emphasis on the amount of product to be filled and thereby proving to be highly accurate. The operation of the packaging is based on the volumetric packing mechanism in which the product is filled into a measuring cup and the amount is measured by the size of the cup. This makes the machine suitable for packing powders, granules, and any other products that require fixed capacity for accurate measurement of an appropriate weight.
The Volumetric Cup Filler Machine Model No. EP-70-CF is developed by ESS PEE Packaging, which is ideal for packing of all types of products like the salt packing, the detergent powder packing, the washing powder packing, the granules packing, the sulphur granules packing, etc. It is quite suitable to maintain both the weight and performance of the machine.
| Feature | Description |
| Filling System | Volumetric cup filling, ensuring accurate weight and volume measurements. |
| Packaging Range | From 10 grams up to 1 kg per pouch, suitable for various products. |
| Speed | Up to 65 PPM (pouches per minute), depending on product type and weight. |
| Sealing | Pneumatic sealing system for airtight seals at the top and bottom of pouches. |
| Material Contact Parts | Constructed with SS-304 stainless steel to meet GMP and ensure food safety. |
| Film Pulling System | Dual motor system minimizes film wastage and ensures smooth film movement. |
| Control System | Custom PLC and touchscreen interface for precise adjustments and easy operation. |
| Print Registration | Built-in print registration from Datalogic (Italy) for accurate branding and product labels. |
| Automation Components | Mitsubishi PLC and SMC pneumatic products for reliable, long-lasting performance. |
| Maintenance | Low maintenance requirements with high-quality, durable components. |
| Design | Compact and space-efficient design, ideal for easy integration into existing production lines. |
The EP-70-CF Volumetric Cup Filler Machine is designed to handle a wide range of products, including:
Powders:ike salt, detergent powder, washing powder and crystallized sugar
Granules: I deal with products such as granules, pellets, and sulphur granules as examples.
In its most suitable for lighter products and for the heavier products also due to its packer’s range of 10g to 1 kg for per pouch.
The EP-70-CF machine can operate at speeds of up to 65 pouches per minute (PPM), depending on the weight and type of product being packed. For lighter products like salt or sugar, the machine can achieve maximum speed, making it highly efficient for high-volume packaging lines. The machine is designed to maintain consistent fill accuracy while achieving high throughput.
The EP-70-CF machines is capable of processing in a rate up to 65 PPM depending on the weight and kind of product that is being packed. In packaging of lighter products such as salt or sugar among others, the machine can go to maximum speed thus being very ideal for large production lines. The machine is intended to provide a reliable means of achieving the required fill accuracy while running at the desired rate.
Yes, it is easy to set up and that’s one of the features that are contained in the EP-70-CF. It includes also a custom Programmable Logic Controller (PLC) and a touch-screen where operators can change the fill amounts, pouch sizes, and speeds of the machine. Consequently, the HMI or SCADA system provides a short setup time and a smooth transfer from one kind of packaging run to another easily.
The EP-70-CF employs a double motor film pulling system that assists the extension of packaging films to ensure that there are few instances of wastage. This system enables an efficient and precise control of the movement of the films and thus minimize the use of film material in sealing process. This is much more advantaging to those businesses, which are seeking for further material recovery and saving particularly when they are using the material frequently for relatively applicative uses such as, packing granules or packing salt.
